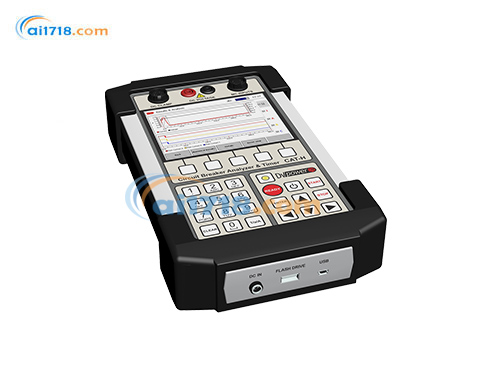

瑞典DV POWER CAT-H断路器分析仪/计时器
•测试结果图的自定义配置
CAT-H订购信息
Instrument with included accessories
Article No
Handheld Circuit Breaker Analyzer &Timer CAT-H with DV-Win software including USB stick
and mini USB cable,Resistive touch pen and Plastic transport case
CATH000-N-OC
Mains power cable with power supply adapter
Standard accessories
Article No
Main contacts cable set 8 m(26.3 ft)with alligator clamps(A1)
CMP-08-SETA1
Main contacts connection 3x1 m(3.3 ft)and ground 2 m(6.6 ft)cable with alligator clamps (A1)
MC-CG-0302A1
Coil control cable 5 m(16.4 ft)with banana plugs
CO-05-00C5B1
Test probe with grip jaws (black)(x 2
TESTPR-GJ-B0
Test probe with grip jaws (red)(x 2
TESTPR-GJ-R0
Coil supply cable set 2x5 m 2,5 mm²(16.4 ft,13 AWG)with banana plugs
C2-05-02BPBP
Dolphin clip (black)(x 2
DOLPIN-CL-B0
Dolphin clip (red)(x 2)
DOLPIN-CL-RO
Voltage sense cable set 2x5m 2,5 mm²(16.4 ft,13 AWG)with banana plugs
S2-05-02BPBP
Jumper cable 1x15 cm 2,5 mm²(0.49 ft,13 AWG)with banana plugs with retractable isolation
(red)(x 3)
JCR-15-2RFRP
Jumper cable 1x15 cm 2,5 mm²(0.49 ft,13 AWG)with banana plugs with retractable isolation
(black)( x 3)
JCB-15-2REBP
Cable bag
CABLE-BAG-00
Optional accessories
Article No
Main contacts cable set 10 m (32.8 ft)with alligator clamps(A1)
CMP-10-SETA1
Main contacts cable set 8 m(26.3 ft)with alligator clamps(A2)
CMP-08-SETA2
Main contacts cable set 10 m (32.8 ft)with alligator clamps (A2)
CMP-10-SETA2
Main contacts cable set 8 m(26.3 ft)with SCT clamps
CMP-08-SETST
Main contacts cable set 10 m(32.8 ft)with SCT clamps
CMP-10-SETST
Main contacts cable set adapter 3 m (9.8 ft)
CMPA-03-SETO
Main contacts cable set adapter 5 m(16.4 ft)
CMPA-05-SETO
Main contacts connection 3x1 m (3.3 ft)and ground 2 m(6.6 ft)cable with alligator clamps(A2)
MC-CG-0302A2
Main contacts connection 3x1 m(3.3 ft)and ground 2 m(6.6 ft)cable with SCT clamps
MG-CG-0302ST
Current clamp 30/300 A power supplied from the instrument with extension 5 m(16.4 ft)and
adapter
CACL-0300-09
Small current clamp 10/100 A with internal battery power supply with extension 5 m(16.4 ft)and
adapter
CACL-0100-00
Voltage sense cable set 2x2 m 2,5 mm²(6.6 ft,13 AWG)with banana plugs
S2-02-02BPBP
Voltage sense cable set 2x10 m 2,5 mm²(32.8 ft,13 AWG)with banana plugs
S2-10-02BPBP
Coil control cable 10 m(32.8 ft)with banana plugs
CO-10-00C5B1
Coil supply cable set 2x10 m 2,5 mm²(32.8 ft,13 AWG)with banana plugs
C2-10-02BPBP
Test probe with split test clamps (black)
TESTPR-SC-B0
Test probe with split test clamps (red
TESTPR-SC-R0
Fire retardant battery bag
FIR-RTBBAG-O
Li-lon battery 7,4 V 2900 mAh within a fire retardant battery bag
LION-BAT-001
Resistive touch pen
RSTCH-PEN-00
Plastic transport case for CAT-H
HARD-CASE-HH
Mains power cable EU 10 A with power supply adapter 12V/5 A
PWR-ADP5A-EU
Mains power cable NA 15 A with power supply adapter 12 V/5 A
PWR-ADP5A-NA
Mains power cable UK 10 A with power supply adapter 12 V/5 A
PWR-ADP5A-UK
Mains power cable AU 10 A with power supply adapter 12 V/5 A
PWR-ADP5A-AU
|
CAT-H断路器分析仪/计时器规格 |
|
| 主触点输入 | |
| 触点输入数 | 3（3×1），每相1个 |
| 每个通道检测主触点 |
-闭合＜1 0Ω -接触电阻范围1 0Ω至5 KΩ -开启＞5 KΩ |
| 开路电压 | 20V DC |
| 短路电流 | 50mA |
| 时间测量 | |
| 时间测量分辨率 |
0.05毫秒至10ms（采样率20kHz） 0，1毫秒2秒测试持续时间（采样率10千赫） |
| 时间精度 | 读数的0. 05% |
| 断路器 | |
| 断路器操作 |
Close (C) Trip (O) Close-Trip (C-O) Trip-Close (O-C) Trip-Close-Trip (O-C-O) |
| 线圈控制 |
开闭线圈双通道控制 高达300 V DC，高达35 A DC |
| DC 电流钳 | |
| 额定电流 | 300 ARMS or 450 A DCPK |
| 测量范围 | 30/300 A |
| 频率范围 | DC to 20 kHz (-3 dB) |
| 电流测量 | |
| 测量范围 | ±35 A DC至5 kHz |
| 精度 | ±（0,5％rdg + 0.1％FS） |
| 直流电压测量 | |
| 范围 | ±300 V |
| 典型精度 | ±0.5%，RDG±0.5%FS |
| 保证精度 | ±1% RDG±1% fs |
| 其他 | |
| 输入电源 | 12 V DC, 1 A |
| 使用市电 | 90 – 264 V AC, 50/60 Hz |
| 内置电池供电 |
2 x 3,7 V, 2900 mAh rechargeable Li-ion battery 正常使用8小时 |
| 显示 |
触摸彩屏 (5.7 in) 图形和数字结果 |
| 低电压指令 |
指令2014/35 / EU（符合CE） 适用标准：对于I级仪器，污染等级2级 |
| 安装类别II | IEC EN 61010-1 |
| 电磁兼容性 |
指令2014/30 /EU（符合CE） 适用标准：EN61326-1 |
| 操作温度 | -10 ºC to + 55 ºC / 14 ºF to +131 ºF |
| 储存运输温度 | -40 ºC to + 70ºC / -40 ºF to +158 ºF |
| 湿度 | 5 % - 95 % 无凝结 |
|
