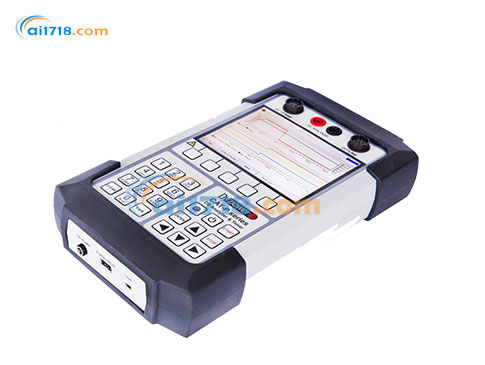

瑞典DV POWER CAT-P手持式断路器机械特性分析仪
•在线测量（*分闸监控测试）
CAT-P订购信息
Instrument with included accessories
Article No
Handheld Circuit Breaker Analyzer &Timer CAT-P with DV-Win software including USB stick and
mini USB cable,Resistive touch pen and Plastic transport case
CATP000-N-00
Mains power cable with power supply adapter
Standard accessories
Article No
Main contacts cable set 8 m(26.3 ft)with alligator clamps (A1)
CMP-08-SETA1
Main contacts connection 3x1 m(3.3 ft)and ground 2 m (6.6 ft)cable with alligator clamps (A1)
MC-CG-0302A1
Voltage sense cable set 2x5m(16.4 ft)2,5 mm²(13 AWG)with banana plugs
S2-05-02BPBP
Jumper cable 1x15 cm 2,5 mm²(0.49 ft,13 AWG)with banana plugs with retractable isolation
(red)
JCR-15-2REBP
Jumper cable 1x15 cm 2,5 mm²(0.49 ft,13 AWG)with banana plugs with retractable isolation
(black)
JCB-15-2REBP
Dolphin clip (black)
DOLPIN-CL-BO
Dolphin clip (red)
DOLPIN-CL-RC
Current clamp 30/300 A power supplied from the instrument with extension 5 m(16.4 ft)and
adapter
CACL-0300-09
AC Current clamp 1 A/1 V with cable 5 m(16.4 ft)(x 3)
CACL-AC00-05
Plastic transport case for accessories
PLAST-CAS-00
Optional accessories
Article No
Coil Control Module
COCON-MOD-00
Coil control cable 5 m(16.4 ft)with banana plugs
CO-05-00C5B1
Coil supply cable set 2x5m 2,5 mm²(16.4 ft,13 AWG)with banana plugs
C2-05-02BPBP
Small current clamp 10/100 A with internal battery power supply with extension 5 m(16.4 ft)
and adapter
CACL-0100-00
Voltage sense cable set 2x2m 2,5 mm²(6.6 ft,13 AWG)with banana plugs
S2-02-02BPBP
Voltage sense cable set 2x10 m 2,5 mm²(32.8 ft,13 AWG)with banana plugs
S2-10-02BPBP
Coil control cable 10 m(32.8 ft)with banana plugs
CO-10-00C5B1
Coil supply cable set 2x10 m 2,5 mm²(32.8 ft,13 AWG)with banana plugs
C2-10-02BPBP
Test probe with grip jaws (black)
TESTPR-GJ-B0
Test probe with grip jaws (red)
TESTPR-GJ-R0
Test probe with split test clamps (black)
TESTPR-SC-B0
Test probe with split test clamps (red)
TESTPR-SC-R0
Extension cable 5 m(16.4 ft)for AC Current clamp 1 A/1 V
CACL-ACE-N1C
Main contacts cable set 10 m(32.8 ft)with alligator clamps (A1)
CMP-10-SETA1
Main contacts cable set 8 m(26.3 ft)with alligator clamps (A2)
CMP-08-SETA2
Main contacts cable set 10 m(32.8 ft)with alligator clamps(A2
CMP-10-SETA2
Main contacts cable set 8 m(26.3 ft)with SCT clamps
CMP-08-SETST
Main contacts cable set 10 m(32.8 ft)with SCT clamps
CMP-10-SETST
Main contacts cable set adapter 3 m (9.8 ft)
CMPA-03-SETO
Main contacts cable set adapter 5 m(16.4 ft
CMPA-05-SETO
Main contacts connection 3x1 m (3.3 ft)and ground 2 m(6.6 ft)cable with alligator clamps (A2)
MC-CG-0302A2
Main contacts connection 3x1 m(3.3 ft)and ground 2 m(6.6 ft)cable with SCT clamps
MC-CG-0302ST
Fire retardant battery bag
FIR-RTBBAG-0
Li-lon battery 7,4 V 2900 mAh within a fire retardant battery bag
LION-BAT-001
Resistive touch pen
RSTCH-PEN-00
Plastic transport case for CAT-P
HARD-CASF-PP
Plastic transport case for accessories
PLAST-CAS-00
Cable bag
CABLE-BAG-00
Mains power cable EU 10 A with power supply adapter 12 V/5 A
PWR-ADP5A-EU
Mains power cable NA 15 A with power supply adapter 12V/5 A
PWR-ADP5A-NA
Mains power cable UK 10 A with power supply adapter 12 V/5 A
PWR-ADP5A-UK
Mains power cable AU 10 A with power supply adapter 12 V/5 A
PWR-ADP5A-AU
|
CAT-P手持式断路器机械特性分析仪规格 |
|
| 主断口输入 | |
| 主断口时间通道 | 3 |
| 每个通道检测主断口特性 | |
| 合闸时 | ≤ 10 Ω |
| 电阻接触范围 | 10 Ω – 5 kΩ （带合闸电阻的断路器） |
| 分闸时 | ≥5 kΩ |
| 计时测量分辨率 |
0.05ms -1s 测试时长（采样率 20kHz） 0.1ms – 2s 测试时长（采样率 10kHz） |
| 断路器操作 |
合闸（C） 分闸（O） 合闸 - 分闸（C-O） 分闸 - 合闸（O-C） 分闸 - 合闸 - 分闸（O-C-O） 首次分闸测试 用户可选择任意想要的测试顺序 |
| 直流电流钳 | |
| 额定电流 | ± 300A（有效值） ， ± 450A（峰值） |
| 测量范围 | 30/300A |
| 频率范围 | 0-20KHz（-3dB） |
| 交流电流钳 | |
| 测量范围 | 0.05A——5 A（有效值） |
| 精度 |
±3% ±1 mV ( 0.05 A -0.5 A),±1.5% ±1 mV (0.5 A - 1 A), ±1% (1 A - 5 A) |
| 直流电压测量 | |
| 测量范围 | ± 300V |
| 精确度 | ±0.5% 读数 ±0.5% 满量程 |
| 保证精度 | ±1% 读数 ±1% 满量程 |
| CAT-P 电源供应 | |
| 电源 | 12V 直流 0.5A |
| 输入 | 90-264 V， 交流电，50/60 Hz |
| 内部电源供应 |
2*3.7 V, 2900mAh 可充电锂离子电池 8 小时正常使用 |
| 显示 |
触屏、色彩显示 145mm(5.7 英寸 ) 图形和数字结果 |
| 适用标准 | |
| 安装类型 | II |
| 污染度 | 2 |
| 安全 | LVD 2006/95/EC (CE Conform)EN 61010-1 |
| 电磁兼容性 |
第 2004/108/EC 符合 CE 标准； EN61362-1:2006 标准 |
| CAN/CSA-C22.2 No. 61010-1, 第二版，包括修正 1 | |
| 环境条件 | |
| 运行温度 | -10 ºC to + 55 ºC / 14 ºF to +131ºF |
| 保管 & 运输 | -40 ºC to + 70ºC / -40 ºF to +158ºF |
| 湿度 | 5%-95% 相对湿度，无冷凝 |
|
CAT-P手持式断路器机械特性分析仪说明文档 |
|
