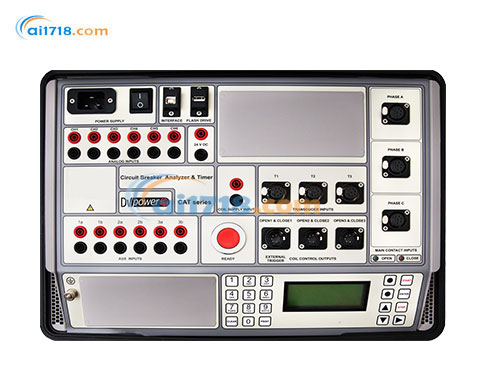

瑞典DVPower CAT64A断路器分析仪和计时器

Included accessories

Windows based DV-Win PC software including USB cable

Mains power cable

Ground (PE) cable

Plastic transport case

瑞典DVPower CAT64A断路器分析仪和计时器由爱仪器仪表网代理，CAT64A是可以是单机控制或通过PC控制，来评估断路器状态的数字化仪器。现在热卖中，如需购买，可通过ai1718.com的客服热线联系我们！

CAT64A断路器分析仪和计时器简介：
CAT *系列断路器分析仪和计时器是独立式或由 PC 控制的数字仪器，用于断路器状态评估。该系列能记录高压和中压断路器运动部件的分闸与合闸线圈电流图以及位移情况。定时通道可记录电弧触头、电阻触头和辅助触头的闭合与断开情况，主触头通道还可测量预插入电阻（若断路器中存在）的电阻值。此外，主触头定时通道能测量双侧接地（BSG）的空气绝缘变电站（AIS）断路器的主电弧触头操作时间。

CAT64A断路器分析仪和计时器特点：
电源输入：90 - 264V AC；50Hz - 60Hz。
PC 通信接口：USB 接口，用于与 PC 进行数据传输和控制。
闪存驱动器：可将测试结果直接下载到 USB 存储棒。
主触头输入：用于主触头和预插入电阻触头的定时测量，以及预插入电阻的电阻测量。
模拟通道输入：测量相关模拟信号的电压。
电流钳电压输出：为电流钳提供 24V 电压输出。
线圈电源输入：分别为分闸和合闸线圈控制提供电压输入。
运动传感器输入：测量断路器运动部件的位移。
辅助输入：用于干湿辅助触头的定时测量。
准备按钮：使仪器准备好开始测试。
线圈控制输出和外部触发输入：用于操作断路器的分闸和合闸线圈，或实现外部触发功能。
断路器状态指示灯：指示断路器的合闸或分闸位置。
微型欧姆表：内置微型欧姆表（*大直流电流 500A），用于静态和动态接触电阻测量（CAT64A 和 CAT124A 型号无此功能）。
字母数字键盘：用于输入断路器数据、测试数据和控制功能。
LCD 显示屏：20 字符 ×4 行，带背光，在强光下也能清晰可见。

CAT64A断路器分析仪和计时器原理：
•断路器状态评估的重要组成部分，是通过新的测试结果比较之前的测试中得到的结果
•测量值与制造商提供的规格做比较。获得测试数据可以在后期作为序列测量的参考
•为了提供准确的比较，测试需要使用相同的测试参数来进行
•在测试结果的偏差和变化可能表明该断路器状态变差
•此功能可以在DV-WIN实现测试计划和图形叠加功能
•断路器检修过程的*结果，可通过DV-WIN软件分析和创建定制报告

CAT64A断路器分析仪和计时器应用：
•可进行对所有断路器的应用程序列表：
•高达12个主触头同步定时测量（每相4个）
•包括合闸电阻（如果在电路断路器存在的话）和6辅助触点
•合闸电阻测量（如果在断路器存在的话）
•评估断路器各极间的同步性
•同时对4线圈电流的分析（3打开和1闭合线圈）
•通过图形显示的电压值评价的变电站电池状态
•位移，触头接触，超程，回弹，阻尼时间和断路器运动部件的平均速度测量
•*次跳闸测试
•静态接触电阻测量（测试电流高达500A）
•动态电阻测量（测试电流高达500A）

•在落地罐式断路器磁心去磁（CAT66D可配置）

CAT35订购信息
Instrument					Article No
Circuit Breaker Analyzer & Timer CAT35					CAT3500-N-01
Circuit Breaker Analyzer & Timer CAT36					CAT3600-N-01
Circuit Breaker Analyzer & Timer CAT64A					CAT64A0-N-01
Circuit Breaker Analyzer & Timer CAT65					CAT6500-N-01
Circuit Breaker Analyzer & Timer CAT66					CAT6600-N-01
Circuit Breaker Analyzer & Timer CAT124A					CAT124A-N-01
Circuit Breaker Analyzer & Timer CAT125					CAT1250-N-01
Circuit Breaker Analyzer & Timer CAT126					CAT1260-N-01

Standard accessories					Article No
Main contact cables
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36)					CM-05-34MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXST
Main contact cables extension
Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3- 10-65MXFX
Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126)					E6- 10- 12MXFX
Control cabinet cables
Coil control cable set 5 m (16.4 ft) with banana plugs (Single-pole control -6 coil channels)					CO-05-6BC5B1
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6)					JCR- 15-2REBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6)					JCB- 15-2REBP
Test probe with grip jaws (black) (x 3)					TESTPR-GJ-B0
Test probe with grip jaws (red) (x 3)					TESTPR-GJ-R0
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs					AX-05-02BPBP
Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs					AN-05-02BPBP
Current cables
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 10-50VMB3
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 10-25VMB1
Sense cables
Sense cables 2 x 10 m (32.8 ft) with alligator clamps (for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)					S2- 10-02BPA1
Cable cases
Cable plastic case - large size (x 2)					CABLE-CAS-03

Optional accessories and features				Article No
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT3x Advanced series (3 channels - one break per phase) (available with CAT35 and CAT36)				BSG-CATII-00
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase) (available with CAT65, CAT66, CAT125 and CAT126)				BSG-CATII-01
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit Breaker for CAT Advanced series (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				BSG-CATDTB-0
BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126)				BSG-CATGIS-0
Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps				C6BC-05-16GMST
Extension cables 2 x 5 m 50 mm2				E2-05-50VMVF
AC Current clamp 1 A / 1 V and cable 5 m with banana plugs				CACL-ACBP-05
Built-in high precision measurement module (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				RMO-HPMM-DG0
Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft)				CACL-0300-07
Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft)				CACL-0300-08
Thermal printer 112 mm (4.4 inch) (built-in)				PRINT- 112-01
Thermal paper roll				PRINT- 112-RO
Cable plastic case with wheels - large size				CABLE-CAS-W3

Control cabinet cables
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)					CO- 10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)					CO- 15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels)					CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels)					CO- 10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels)					CO- 15-00C5B1
Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs					CS-02-02BPBP
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs					CS- 10-02BPBP
Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs					C2-02-02BPBP
Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs					C2-05-02BPBP
Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs					C2- 10-02BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black)					JCB- 15-2BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red)					JCR- 15-2BPBP
Auxiliary contacts cable set 12 x 5 m with banana plugs					AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs					AX- 10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs					AX- 15-02BPBP
Analog channels cable set 12 x 5 m with banana plugs					AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs					AN- 10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs					AN- 15-02BPBP
Main contact cables
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36)					CM-03-34MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXST
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36)					CM-03-34MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36)					CM-05-34MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXA2
Main contact cables extension
Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3-05-65MXFX
Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126)					E6-05- 12MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66)					E3- 15-65MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126)					E6- 15- 12MXFX
Current cables
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2-05-50VMB3
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 15-70VMB3
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2-05-25VMB1
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 15-35VMB1
Sense cables
Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2					S2-05-02BPA2
Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2					S2- 15-02BPA2

Transducers
Digital rotary transducer with 5 m (16.4 ft) connection cable					DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft) connection cable					DRT-250-C610
Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories					DRT-SET-0005
Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories					DRT-SET-0010
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT- 150-C305
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-225-C305
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-300-C305
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-500-C305
Three phase digital rotary transducer kit (with 5 m connection cable)					TPH-DRTS-005
Online first trip test kit - Three-pole control for CAT Advanced series					ONFTT-KIT-01
Online first trip test kit - Single-pole control for CAT Advanced series					ONFTT-KIT-00
Transducer mounting kits
Universal transducer mounting kit					UTM-KIT-0000
Universal transducer mounting kit - extended version					UTM-KIT-0001
Doble transducer adapter					DTA-BOX-C002
Big clamping base					UTM-LCB-0080
Small clamping base					UTM-SCB-0030
Articulated arm					UTM-AA-0288
Carrier (L profile) for digital rotary transducer					DRT-CRL-0090
Carrier for analog rotary transducer					ART-CRL-0000
Linear transducer rod					LAT-ROD-0000
Bellow coupling (M6)					DRT-COUP-003
Bellow coupling (M10)					DRT-COUP-001
Magnet					UTM-MAG-0800
Four mechanical adapters 10 mm (M6, M8, M10, M12)					DRT-MADP-004
Four mechanical adapters 6 mm (M6, M8, M10, M12)					DRT-MADP-604

CAT64A断路器分析仪和计时器规格
电源供应
根据 IEC/EN60320-1; UL498, CSA 22.2连接
电源	90 V - 264 V AC
频率	50/60 Hz
I输入功率	3900 VA
保险丝15 A / 250 V，快速反应，但不是用户可更换
适用标准
安装/过电压	第二类
污染	2度
安全	LVD 2014 / 35 /欧盟（CE符合）标准EN 61010-1
EMC	指令2014 / 30 /欧盟（CE符合标准EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
环境条件
操作温度	-10 ºC - + 55 ºC / 14 ºF - +131 ºF
存储和运输	-40 ºC - + 70ºC / -40 ºF - +158 ºF
湿度	度5% - 95%相对湿度
尺寸/重量
尺寸(宽 x 高 x 深):	480 mm x 197 mm x 395 mm 18.89 in x 7.75 in x 15.55 in
重量	12,9 kg / 28.4 lbs
