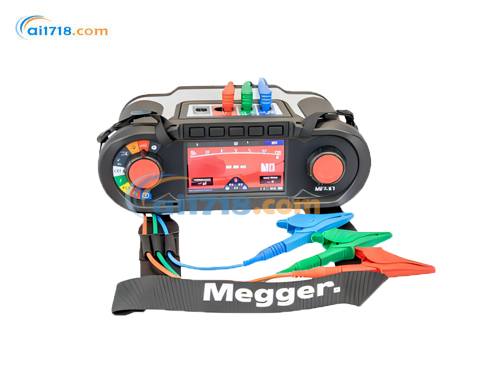

美国MEGGER MFT-X1 多功能测试仪由爱仪器仪表网代理,MFT-X1设备制造旨在用于所有低压电气装置,包括电动车充电桩和家用光伏系统,MFT-X1的测试功能范围允许装置的一般调试、定期维护以及详细的故障诊断。现在热卖中,如需购买,可通过ai1718.com的客服热线联系我们!
MFT-X1 引入了Megger*代基于平台、用户可升级的 MFT,以添加到现有的Megger MFT1700系列多功能测试仪中。该设备是在英国Dover的工厂设计和制造的,结合了基于多年客户回馈的大量新功能。借助 MFT-X1,我们可以提供True Loop™测试,这是行业*的回路阻抗测试;采用获得专利的 Confidence Meter™ 技术;完全兼容 CertSuite™软件,轻而易举生成测试相关报告证书。高分辨率的回路测试、稳定的绝缘电压输出、全彩色屏幕和新的操作界面现已成为标准配置。用户可升级的操作软件可确保 MFT-X1 能够适应法规变化,使其成为快速、可靠、准确和适应性强的*测试仪器。
设备制造旨在用于所有低压电气装置,包括电动车充电桩和家用光伏系统,MFT-X1的测试功能范围允许装置的一般调试、定期维护以及详细的故障诊断。
MFT-X1 多功能测试仪特点
专为单相和三相装置的电气测试而设计
全新功能包括全彩屏幕、RCD 配置器和电动车充电桩测试
与 CertSuite™软件完全兼容,可轻松生成证书和报告
使用获得专利的Confidence Meter™进行 TrueLoop™ 测量
使用快速拆卸电池组和可充电电池选件,保障时刻供电
订购信息 | |||
Description | Part number | Description | Part number |
MFT-X1-BS Multifunction tester BS1363 | 1012-223 | Optional and replacement accessories | |
Multipurpose hard base carry case | 1014-985 | ||
Included accessories | Blow moulded carry case (Polypropylene) | 1013-453 | |
Switched test probe SP5 | Switched test probe SP5 | 1002-774 | |
Red test lead,probes,clips and grabbers | Neck strap replacement | 1013-454 | |
Blue test lead,probe,dlips and grabbers | Li-ION battery 4400 mAh | 1013-450 | |
Green test lead,probe,clips and grabbers | 8x AA Alkaline quick release battery module with | AA cells 1013-452 | |
Li-ION battery 4400 mAh | SIA10 MAINS socket interface adaptor UK (boxed) | 1014-300 | |
Li-ION battery charge | Li-ION battery charge | 1013-451 | |
SIA10 MAINS socket interface adaptor UK | 3 lead set RD/GN/BL non-fused (boxed) | 1014-291 | |
Neck strar | 3 lead pro set RD/GN/BL non-fused (boxed) | 1014-292 | |
Multipurpose hard base carry case | 3 lead set RD/GN/BL fused 10 A(boxed) | 1014-295 | |
Quick start guide | 3 piece grabber set RD/GN/BL (boxed) | 1014-299 | |
Calibration certificate | 7 piece probe and clip set RD/GN/BL(boxed) | 1014-301 | |
3 lead RD/GN/BL fused 10 A(boxed)-leads only | 1014-304 | ||
MCC1010 Current clamp | 1010-516 | ||
MSA1363 socket adaptor UK | 1013-837 | ||
LA-KIT Lamp adaptor kit | 1014-833 | ||
UKAS Calibration certificate | 1013-460 |
MFT-X1功能 | |
电压测量 | |
电压范围 |
0.001 V to 2V(mV range)2 V to 600 V(V range),1000 V DC (on-CAT rated circuits) |
电压类型 | Trms,AC,DC |
相位序列 | Automatic phase sequence testing on detection of valid three phase supplies |
电流测量(非接触式) | |
AC Trms | Using optional accessories:MCC1010 current clamp |
测定范围 | MCC1010:1 mA to 300 A |
连续性/阻力 | |
测量范围数字显示器 | 0.01 Ωto 999 kΩAuto-ranging |
测量范围模拟电弧 | 0 Ω to 1 MQ log scale |
测试电压 | 4 V DC to 5VDC |
试验电流(标称) |
>200 mA 0Ω><2Ω 10 mA Auto reduction on high resistance (actual current reported in display) |
测试极性 | Forward polarity |
蜂鸣器电阻范围 | >0.01 Ω<2 kΩ |
Buzzer threshold | 0.3,0.5,1,2,3,4,5,10,20,30,40,50,100,200 Ω |
Insulation testing | |
Measurement range Digital display | 0.001 MΩ to 999 MΩ Auto-ranging |
Measurement range Analogue arc | 0.001 MΩ to >1000 MΩ log scale |
Insulation test voltages | 50 V DC to 1000VDC+Variable 50 V to 999 V |
测试电流 | 1 mA to 2 mA |
Stabilised output voltage | Output test voltage stabilised to -0%+2%+2 V |
Loop impedance testing | |
2 Wire -all modes | |
Test types | Mode 1: Non-Trip |
Mode 2:High current | |
Mode 3:High resolution | |
分辨率 | Non-Trip 0.01 Ω |
High current: 0.01 Ω | |
High resolution:0.001 Ω | |
电压范围 | Non-trip:48 V AC to 280 V AC |
High current:48 V AC to 550V AC | |
High resolution:48 V AC to 550 V AC | |
频段 | 45 Hz to 65 Hz(all modes) |
相位 | Non-trip:Single phase |
High current:Three phase | |
High resolution:Three phase | |
3线不跳闸 | |
测试类型 |
RCD(non-trip) RCD EV (non-trip on 6mA EV RDCs) |
